Hydrogenation Equipment

Your Professional Hydrogenation Equipment Supplier

Our goal is to become your true partner in the field of hydrogenation equipment in China. Focusing on the R&D, manufacturing and sales of hydrogen producing and refueling equipment and key components for a closed-loop full ecological industrial chain featured by green power, hydrogen energy and end-use equipment, SANY Hydrogen Energy Co., Ltd. is the world’s leading provider of package solutions for hydrogen energy equipment. We have a skilled engineering team dedicated to refining every stage, from product development and process improvement to production oversight, ensuring every product delivered meets rigorous quality and performance standards. The price is competitive and the product is quality-assured, which is a good choice for your long-term cooperation.

First 12 3 Last 1/3

Why Choose Us

Quality control

Our products will be tested for product quality by welding leak detection, defect detection, X-ray fluorescence spectrometer detection and other experiments in the post-production stage.

Customization requirements

We understand that the needs of each customer are not exactly the same, so we can provide customized system services according to the specific requirements of customers.

Production equipment

We have hydrogen station assembly line, hydrogen production equipment assembly line, welding robot workstation, separator CNC cutting machine, electrolyzer assembly station and other production equipment.

Our services

In the pre-sales stage, our team of experts will recommend the most suitable products according to the needs of customers and provide detailed technical consultation. During the sales period, we ensure timely delivery and provide installation guidance. For after-sales, we provide long-term technical support, warranty services and spare parts to help customers maximize the use of products and get reliable maintenance during use.

Types of Hydrogenation Equipment

The hydrogenation equipment produced by our company mainly include the following types:

Skid Mounted Compressor

Skid mounted compressors fit into this alloy-reinforced framework like a piece of a gargantuan puzzle, thus providing a primary source of power for pneumatic controls, instrumentation, and processing machinery.

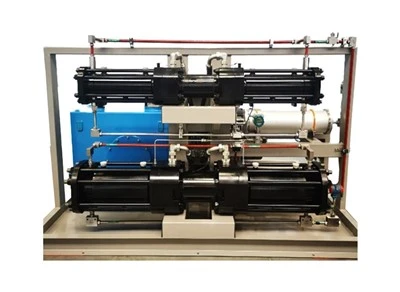

Hydraulic Piston Compressor

A piston compressor is the oldest and most common type of industrial compressor. This type of air compressor uses principles of displacement to increase the pressure of the enclosed volume of gas or air. They are available in a range of configurations, from single-acting, double-acting, oil-lubricated or oil-free.

Advantages of Hydrogenation Equipment

Skid Mounted Compressor

Skid mounted compressor have many advantages, including:

Explosion safety: The absence of oil reduces the risk of explosions and fires, making them safe in hazardous environments.

Tailor-made solutions: Every compressor is customized to meet specific customer needs, ensuring maximum efficiency and performance.

Resistance to aggressive environments: Special materials and coatings allow operation with aggressive gases without the risk of corrosion or equipment damage.

Hydraulic Piston Compressor

Hydraulic piston compressor have many advantages, including:

Durability and reliability: Hydraulic piston compressors are often built with durable components and can withstand harsh environments.

Adaptability and versatility: They can be easily integrated into existing hydraulic systems, simplifying installation and operation. Some models allow for position-free installation.

Application of Hydrogenation Equipment

Skid Mounted Compressor
Skid mounted compressor can be used for a variety of purposes, including: This station is designed for the efficient and safe compression of argon, ensuring stable operation across a wide temperature and pressure range with high reliability and performance.

Hydraulic Piston Compressor
Hydraulic piston compressor can be used for a variety of purposes, including: Hydraulic piston compressors, which convert hydraulic power into compressed air, are versatile and find applications across various industries. They are particularly useful in situations where hydraulic power is already available and compressed air is needed for pneumatic tools, tire filling, cleaning, and other tasks. Hydraulic piston compressors are commonly used on drilling rigs, tractors, excavators, and other mobile machinery to provide a readily available source of compressed air for various tasks like operating pneumatic tools, filling tires, or cleaning equipment.

Specification of Skid Mounted Compressor

Product name	Skid mounted compressor
Structure Type	Closed Type
Installation Type	Stationary Type
Free Air Deliver	3.5(M3/Min)
Pressure	16bar
Motor Power	37KW
Air Tank	600L*2
Electricity	380V
Weight	800kg
Origin	China

Features of Skid Mounted Compressor

Frame

A strong and convenient design for installation, ensuring stable operation of the unit.

Separator at the inlet

Includes level sensors and automatic condensate removal.

Electric motor

Explosion-proof, high efficiency asynchronous.

Cylinder block

Modular design, adapted to the individual needs of the customer.

Features of Hydraulic Piston Compressor

The hydraulic piston compressor converts the hydraulic power of a mobile machine, vehicle, or vessel into compressed air, offering a compact and efficient alternative to large diesel-powered compressors. Its lightweight and space-saving design makes it ideal for mobile applications, including use with drilling rigs, tractors, and excavators. The series has also special oil-free models provide additional versatility with position-free installation, use, and transportation, while requiring less maintenance and producing cleaner airflow.

Specification of Hydraulic Piston Compressor

CNG sub-station compressor model		LKCNGY700—1A	LKCNGY700—2C	LKCNGY1000-1B	LKCNGY1000-2C
Compressed media		Natural gas	Natural gas	Natural gas	Natural gas
Type		Skid-mounted	Skid-mounted	Skid-mounted	Skid-mounted
Drive method		Hydraulic piston drive	Hydraulic piston drive	Hydraulic piston drive	Hydraulic piston drive
Drive method		Oil-free lubrication	Oil-free lubrication	Oil-free lubrication	Oil-free lubrication
Average flow	Nm3/h	700	1400	1000	2000
Control form		PLC automatic control	PLC automatic control	PLC automatic control	PLC automatic control
Inspiratory pressure	MPa	3.0—20.0	3.0—20.0	3.0—20.0	3.0—20.0
Maximum exhaust pressure	MPa	25.0	25.0	25.0	25.0
Suction temperature	℃	≤45	≤45	≤45	≤45
Suction temperature	℃	<50	<50	<50	<50
Rotating speed	R/min	1450	1450	1450	1450
Stroke	MM	400	400	400	400
Stroke		Level 2	Level 2	二级	二级
Dimensions	L×W×H mm	2800×2000×1860	3900×2400×1860	2800×2000×1860	3900×2400×1860
Noise	DB(A)	≤70	≤70	≤70	≤70
Rated power	KW	30	30X2	37	37X2

Packing and Shipping of Hydrogenation Equipment

Packing	Wooden box
Shipping	Shipped by road, sea, rail

FAQ

Q: What is a skid mounted compressor?

A: Used for compressing gases without the use of oil for lubrication, ensuring the cleanliness of the compressed gas. They operate for up to 8,000 hours without maintenance.

Q: What is the life expectancy of a rotary screw compressor?

A: Oil-flooded rotary screw compressors: These compressors can last for up to 100,000 hours with proper care and maintenance, or up to ~20 years. With proper preventive maintenance, including regular oil changes, filter replacement, and inspections, they can last even longer.

Q: How big of an air compressor do you need to run air tools?

A: To determine the right size air compressor for your air tools, you need to consider the CFM (cubic feet per minute) requirements of your tools and the size of the air tank. A larger tank allows for more extended tool use before the compressor needs to cycle on again.

Q: What is the difference between a bus compressor and a normal compressor?

A: Although typical compression is hard to hear, bus compression is much easier to hear. With that in mind, how much you attenuate will greatly impact the sound of your mix or master, as it will determine whether or not this compression is perceivable.

Q: Do rotary screw compressors run constantly?

A: Yes, rotary screw compressors are designed to operate continuously. They are often used in industrial settings where a constant, reliable supply of compressed air is needed, and they are built to handle 100% duty cycles.

Q: What does a hydraulic compressor do?

A: A hydraulic air compressor is an air compressor powered by the hydraulics on a vehicle or machine. It allows operators to convert their hydraulic power into air power, ultimately equipping a vehicle or machine with both hydraulic and air power.

Q: Which is better, a screw or piston compressor?

A: If you need a cost-effective solution for intermittent use, such as powering pneumatic tools in a workshop, a piston compressor might be the best fit. However, if you require a reliable, continuous source of compressed air for industrial applications, a screw compressor would be the better choice.
